Manufacturing

As an expert of tinplate processing, we have invested in several advanced production lines in our manufacturing plant of an area of 120,000 square meters. Our annual output can reach 300,000 tons.

Tinplate Production Process
  • Pickling
  • Cold Rolling
  • Degreasing
  • Annealing
  • Flattening
  • Edge Trimming
  • Tinning
  • Cutting
Pickling (1 line): to clean the raw materialsPickling (1 line): to clean the raw materials

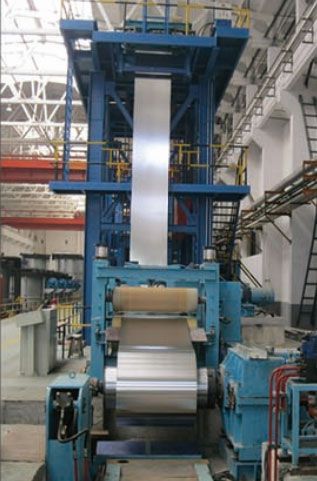

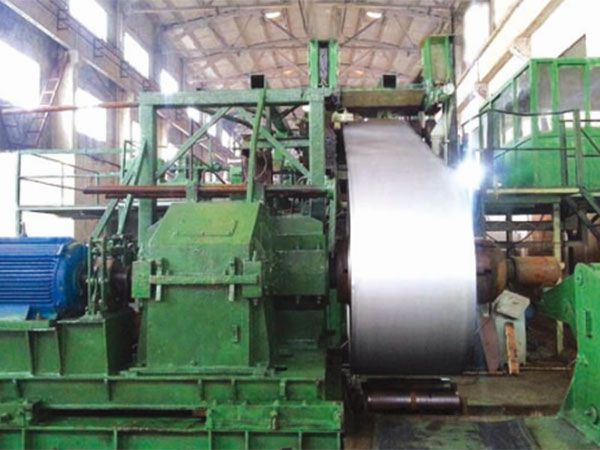

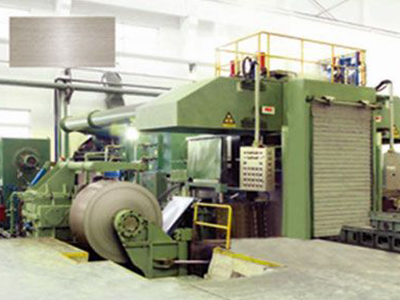

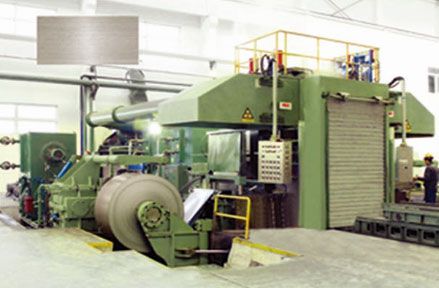

Cold Rolling (5 lines): to control the thicknessCold Rolling (5 lines): to control the thickness

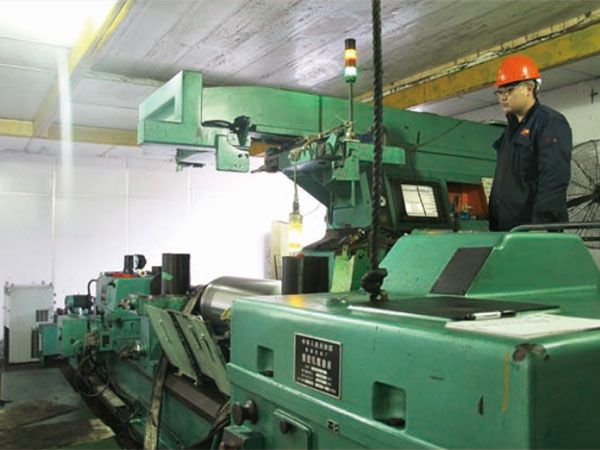

Grinder for Cold Rollers (6 sets): to polish cold rolling rollersGrinder for Cold Rollers (6 sets): to polish cold rolling rollers

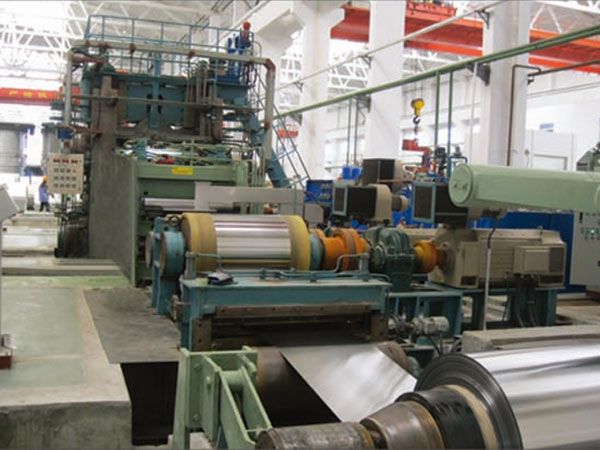

Cleaning and Degreasing (3 lines): to clean the strip surface after cold rollingCleaning and Degreasing (3 lines): to clean the strip surface after cold rolling

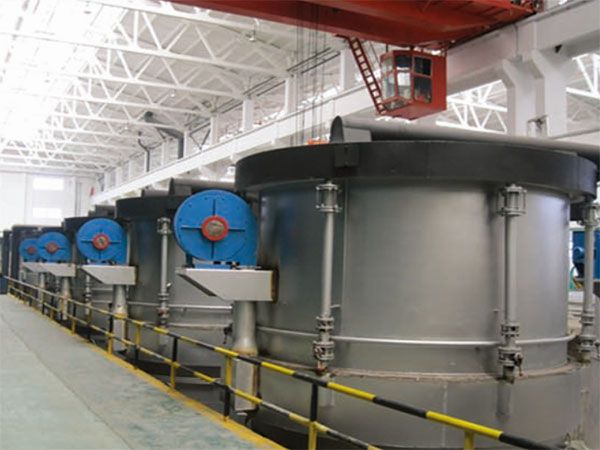

Batch Annealing (44 sets): to control the temperBatch Annealing (44 sets): to control the temper

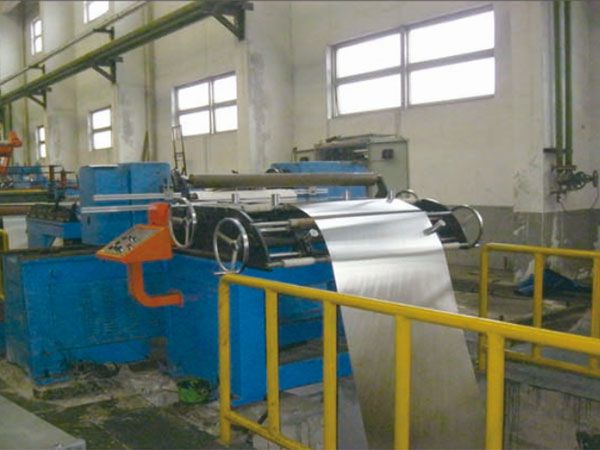

Flattening (3 lines): to flatten the black plateFlattening (3 lines): to flatten the black plate

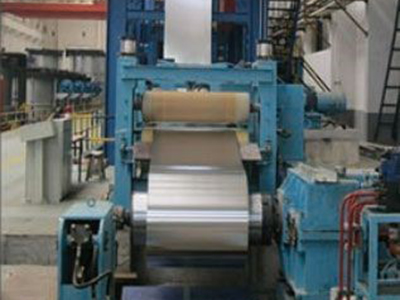

Edge Trimming (3 lines): to control the width, black plate is finished after this processEdge Trimming (3 lines): to control the width, black plate is finished after this process

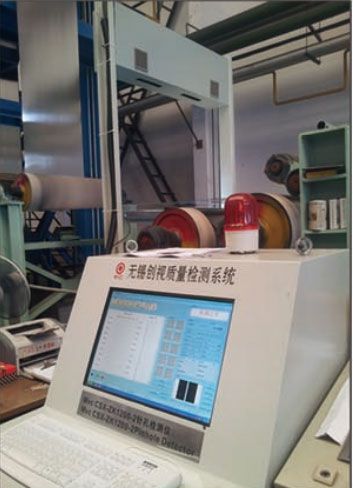

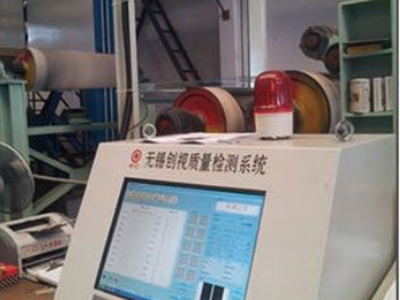

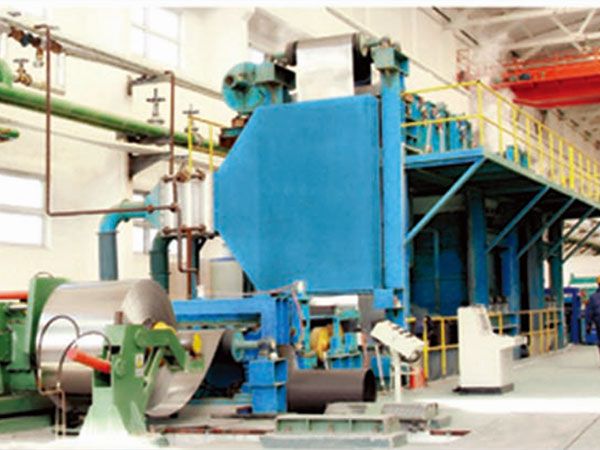

Tinning (2 lines, with on-line pinhole detector): coating + passivation + DOS oiling are performed hereTinning (2 lines, with on-line pinhole detector): coating + passivation + DOS oiling are performed here
Tinning (2 lines, with on-line pinhole detector): coating + passivation + DOS oiling are performed hereTinning (2 lines, with on-line pinhole detector): coating + passivation + DOS oiling are performed here

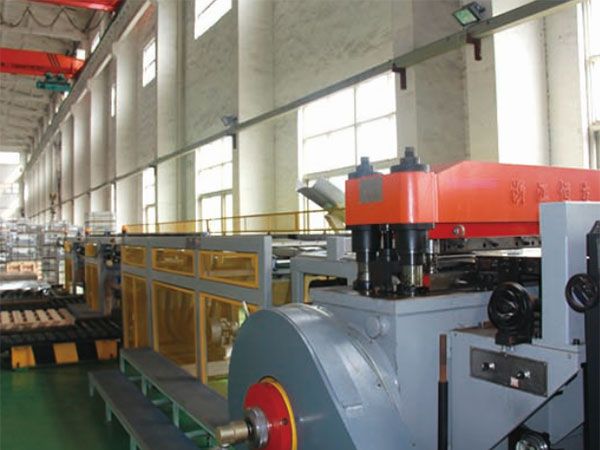

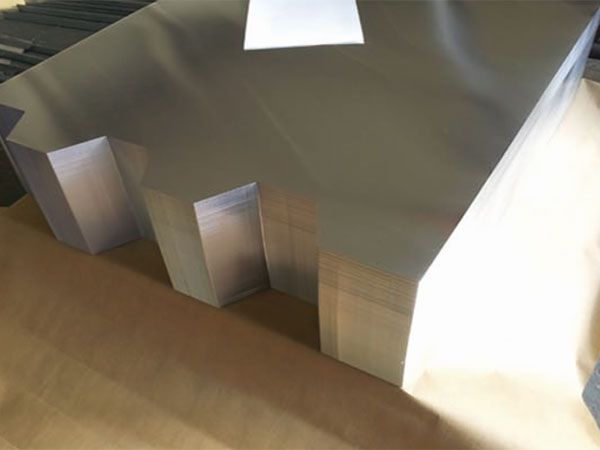

Cutting (2 lines, with on-line pinhole detector): to control the cutting lengthCutting (2 lines, with on-line pinhole detector): to control the cutting length
Cutting (2 lines, with on-line pinhole detector): to control the cutting lengthCutting (2 lines, with on-line pinhole detector): to control the cutting length

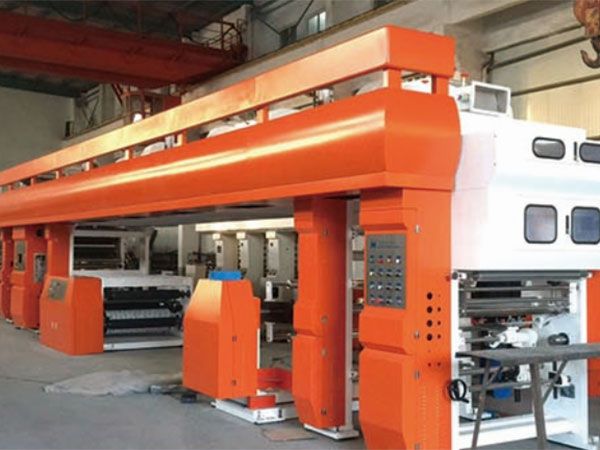

Lamination: to produce laminated steelLamination: to produce laminated steel

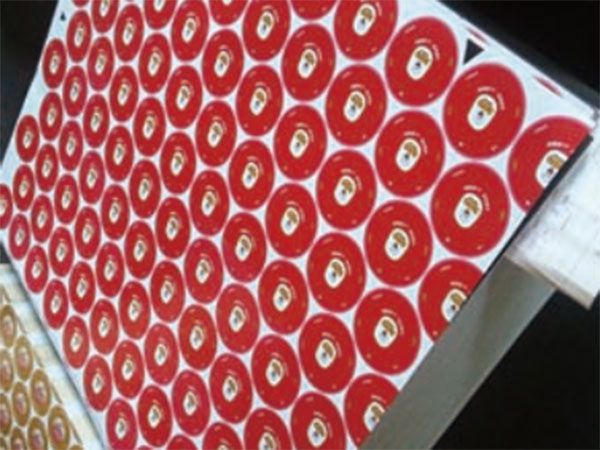

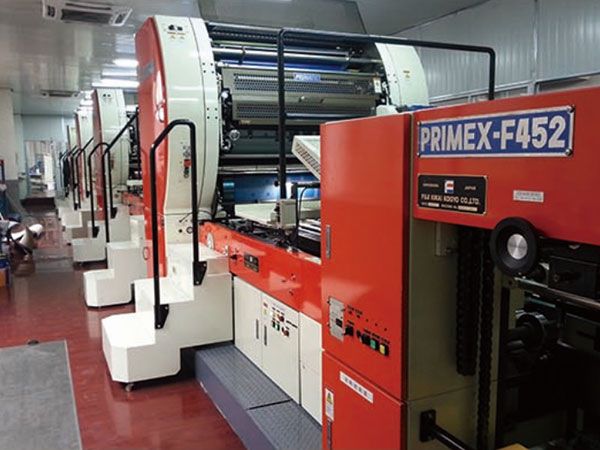

Printing servicePrinting service
Printing servicePrinting service
Printing servicePrinting service
Manufacturing Equipment
  • 1 pickling line: used to remove the oxide and various impurities on the surface of steel.
  • 5 cold rolling mills: one 650 mill, two 900 mills, one 1050 mill and one 1150 mill, used to control the thickness and shape.
  • 3 degreasing lines: two 1200 degreasing lines with one 900 degreasing line, used to clean emulsion and stains on the surface.
  • 44 annealing furnaces: serve to anneal and cool steel strip coils, the purpose is to intentionally alter the physical properties and hardness of steel to a specified range.
  • 3 flattening machines: one 900 flattener, one 1050 flattener and one 1150 flattener, used to control the surface flatness, straightness and evenness.
  • 3 edge trimming machines: one 1050 edge trimmer, one 1200 edge trimmer and one 1250 edge trimmer, used to trim the edge of metal strips to ensure that the width is in compliance with customer's requirements.
  • 2 tinning lines: one 900 tinning line and one 1200 tinning line, used for coating of steel surface with thin tin, the coating weight is controlled within a specified range.
  • 2 cut-to-length lines: one high-speed cutting line and one low-speed cutting line, applied to cut the tinplate coils into sheets of desired length with high precision.
Quality Control

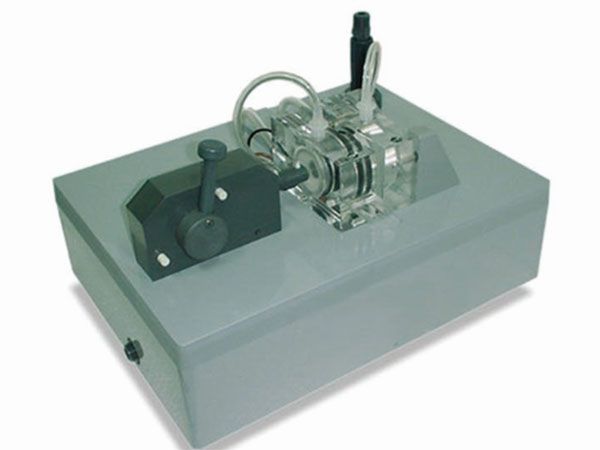

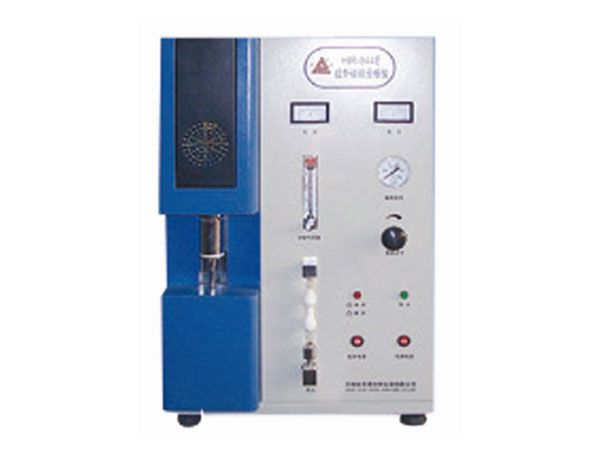

Infrared Analyzer Infrared Analyzer
Tin Coating TesterTin Coating Tester

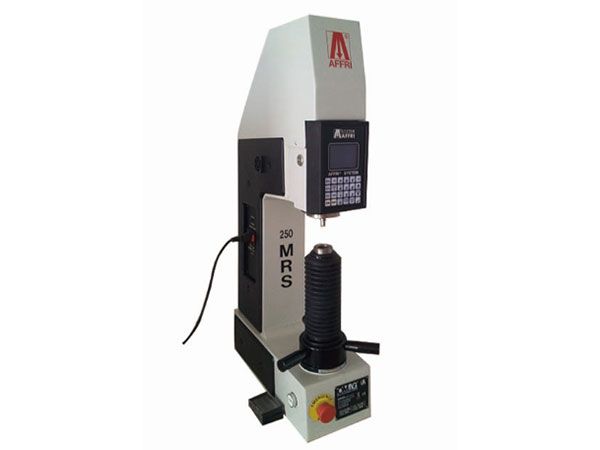

Hardness Tester Hardness Tester

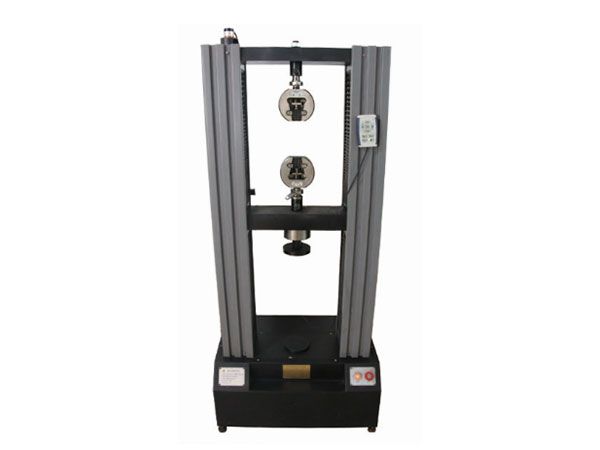

Tensile TesterTensile Tester
Dimensional Measurement DeviceDimensional Measurement Device

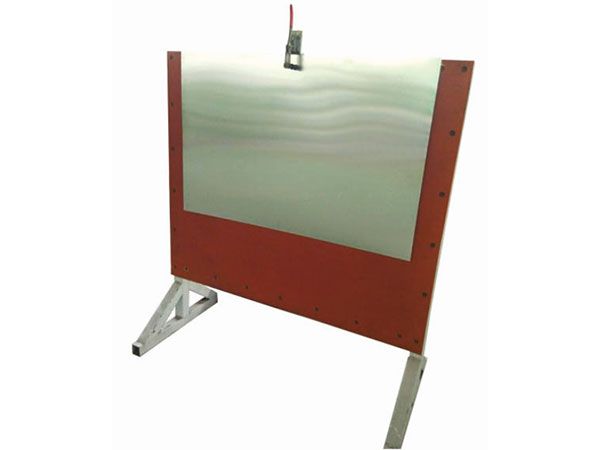

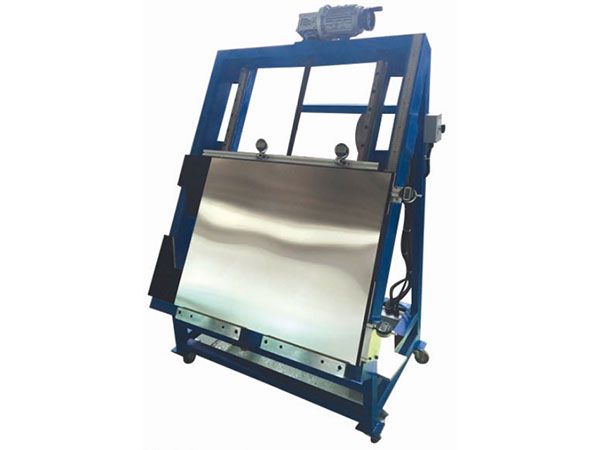

Surface Flatness Measurement DeviceSurface Flatness Measurement Device
Warehouse

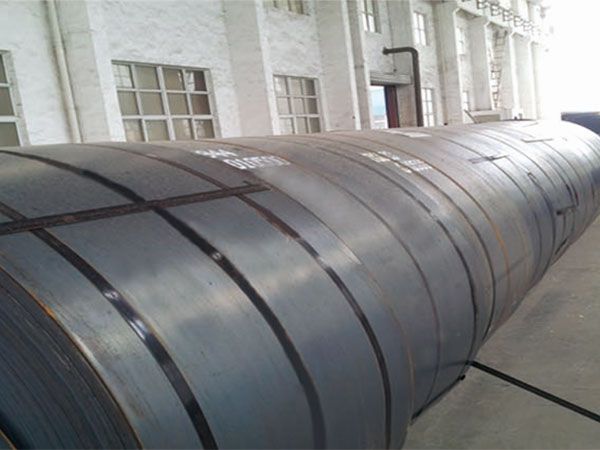

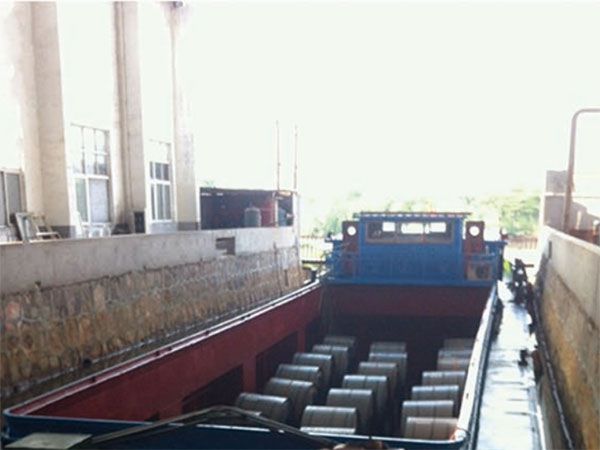

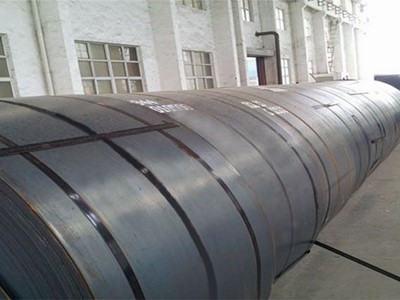

Raw Materials Warehouse with Transportation TerminalRaw Materials Warehouse with Transportation Terminal
Raw Materials Warehouse with Transportation TerminalRaw Materials Warehouse with Transportation Terminal

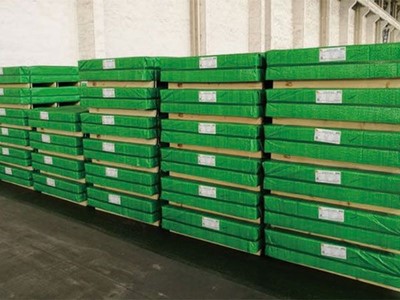

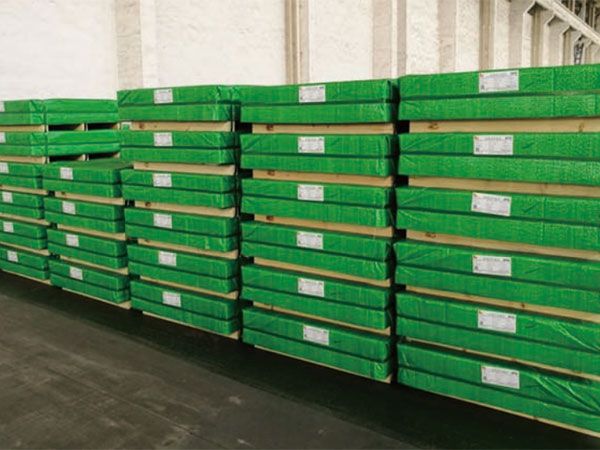

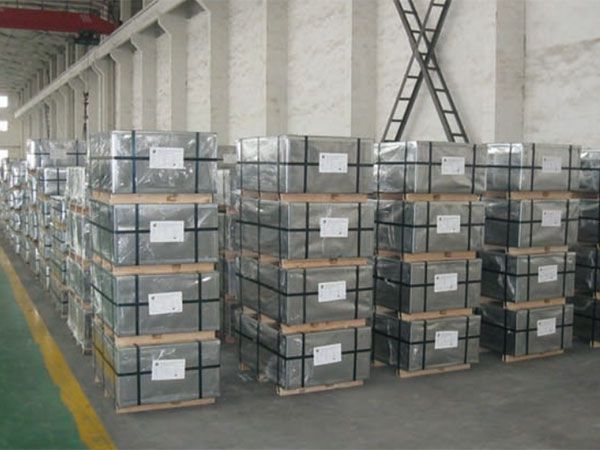

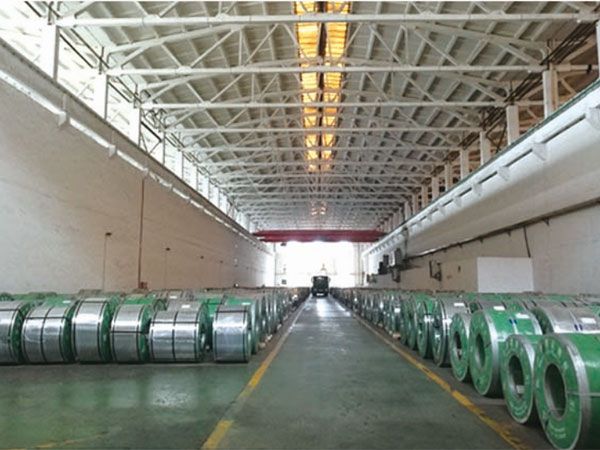

Stock WarehouseStock Warehouse
Stock WarehouseStock Warehouse
Stock WarehouseStock Warehouse
What We Offer

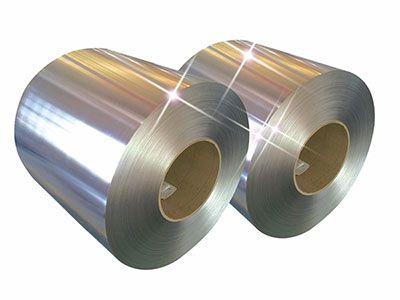

  • Tinplate Coil Read More

  • Tinplate Coil

    Our tinplate coil is available in a weight range of 3-8 tons.
    After receiving the cargo, customer can flexibly cut the tinplate coil into different sizes sheets, or slit it into narrower strips.

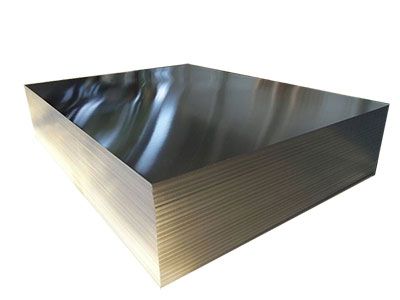

  • Tinplate Sheet Read More

  • Tinplate Sheet

    We can supply electrolytic tinplate in sheet form with customer-specific length. With our automatic cut-to-length machines, we are able to cut tinplate coils into tinplate sheets of any desired length in accuracy.
